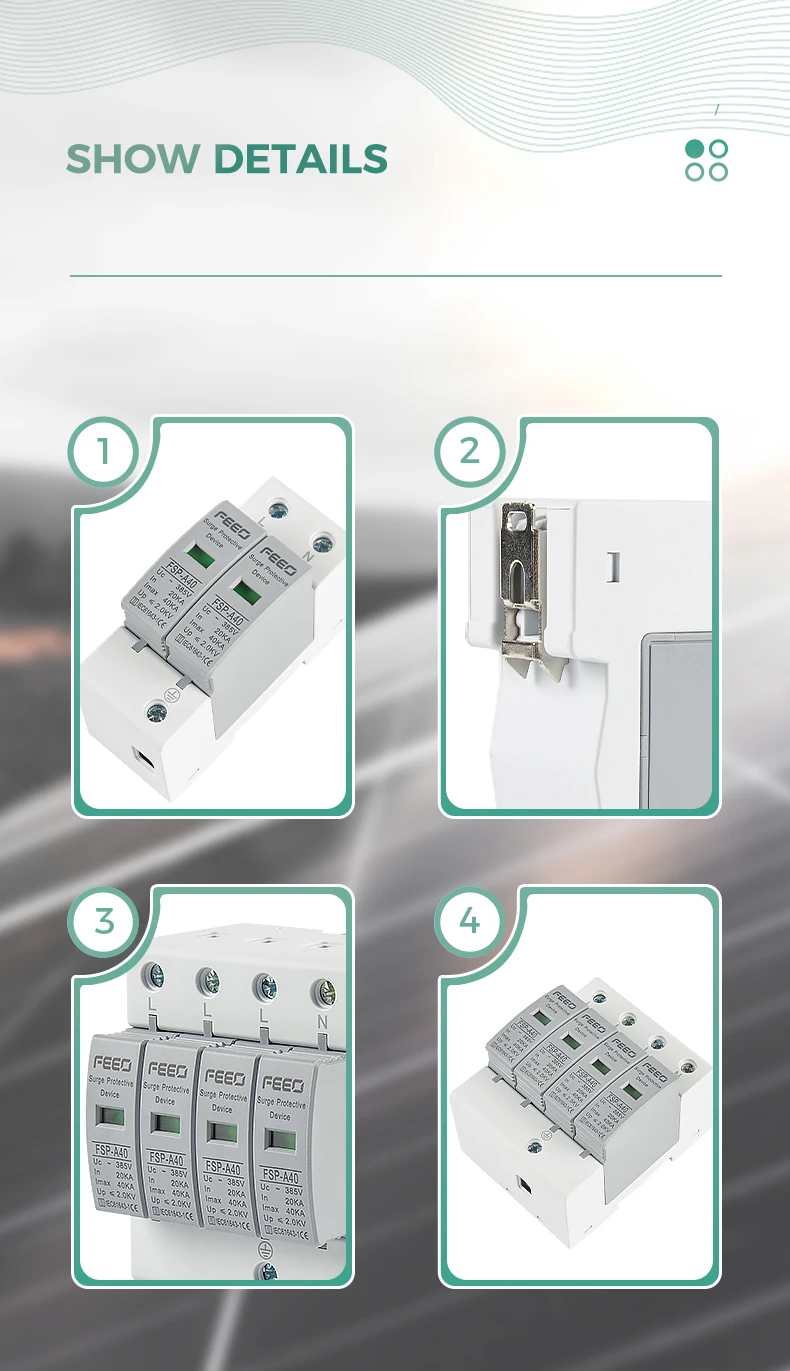

FEEO Pwotekteur Surcharge AC 1P N 275VAC 20-40ka

Deskripsyon Product

AC SPD itilize apwopriye nan TT, TN{0}}S, TN-C, IT, TN-C-S ak elatriye sistèm ekipman pou pouvwa AC 50/60Hz,<380V, installation om the joint of LPZ1 or LPZ2 and LPZ3, it adopts 35mm standard rail, there is a failure release mounted in the module of surge protection device. When the SPD fails in breakdown for over-hart and over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.



Paramèt teknik	FSP-A
Voltaj opere nominale Un (V ~)	380V/220V
Maksimòm vòltaj opere kontinyèl Uc (V ~)	275V	320V	385V	385V	385V	420V
Pwoteksyon Voltage Nivo Up (V ~) kV	Mwens pase oswa egal a 1.0	Mwens pase oswa egal a 1.2	Mwens pase oswa egal a 1.8	Mwens pase oswa egal a 2.0	Mwens pase oswa egal a 2.2	Mwens pase oswa egal a 2.8
Kouran dechaj nominal ln (8/20s)kA	5	10	20	30	40	60
Maksimòm Egzeyat Kouran lmax(8/20s)kA	10	20	40	60	80	100
Tan repons (ns)	<25
Tès Creole	IEC61643.1, GB18802.1
Anviwònman opere (santigrad)	-40 degre ~+85 degre
Max Koneksyon Liy	35mm2 fil difisil / 35mm2 fil fil kwiv liy
Liy Koneksyon Rekòmande	16mm2 fil difisil / 25mm2 fil fil kwiv liy
Enstalasyon	Estanda Rail 35mm
Materyèl ki kouvri deyò	Boule-prèv Nylon
